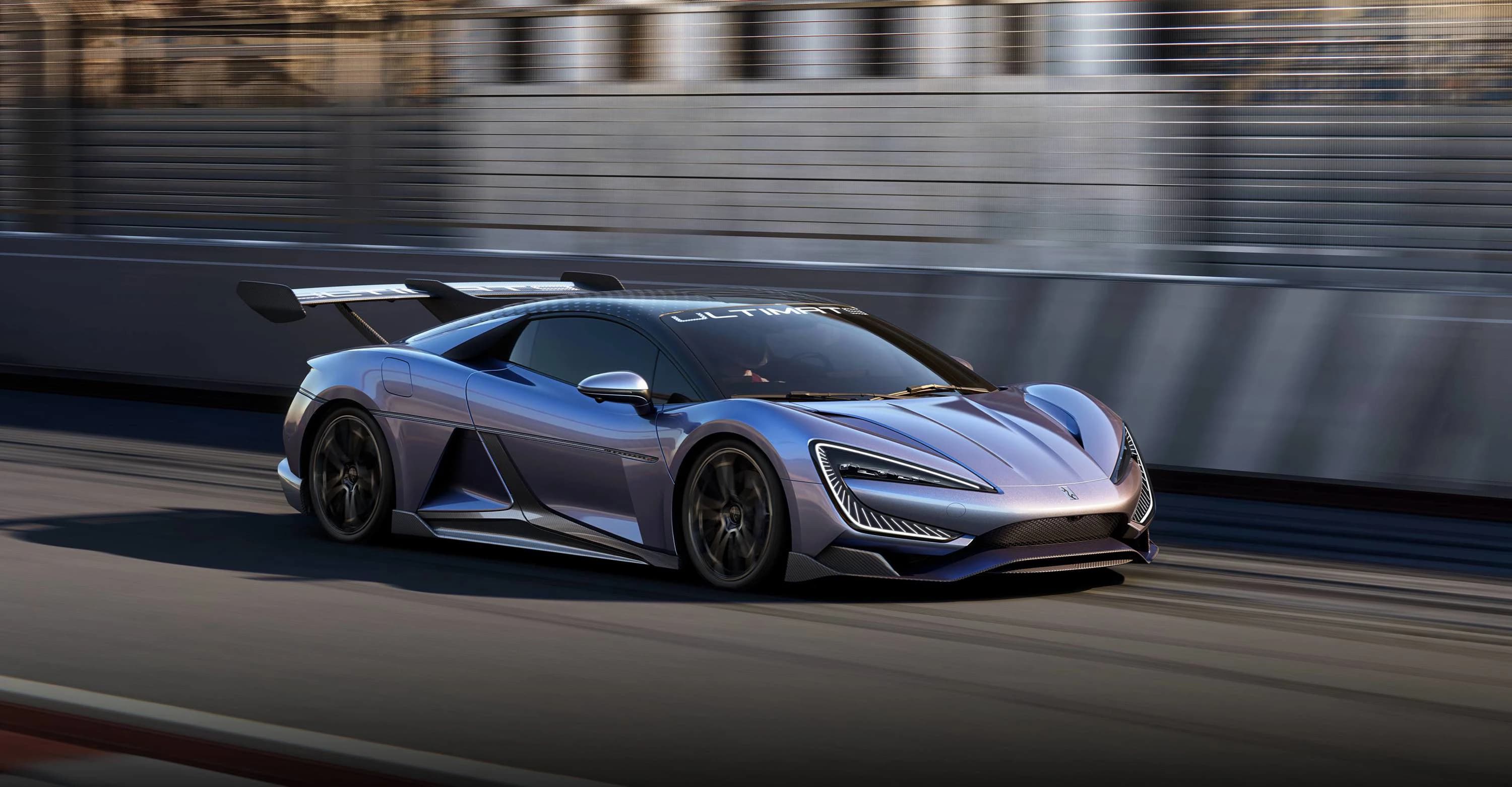

YangWang U9 electric vehicle exterior

YangWang U9 - Electric Vehicle Specs

Sports Car AWD

Power

960 kW

(1305 HP)

0-100 km/h

2.4 s

Top Speed

309 km/h

Battery Options

Standard Battery (83 kWh / 80 kWh)

Charging Curve & Charging Speed Analysis

Understanding Charging Performance

Charging performance isn't just about peak power—it's about sustained power across the entire charging curve. A vehicle that maintains 150kW from 10-80% SOC will charge faster than one that peaks at 250kW but quickly drops to 100kW after 20% SOC. The shape of the curve matters more than the highest peak power.

The key metric is C-rate, which accounts for both charging power and battery capacity. A C-rate of 2.0 means the battery can theoretically charge from 0-100% in 30 minutes, while 1.0 C-rate equals 60 minutes. This makes it easy to compare vehicles regardless of battery size.

Charging Curve Shape

Flat, sustained power across a wide SOC range beats high peaks that quickly taper off. Look for vehicles that maintain high power from 10-80% SOC.

C‑Rate & Timing

C-rate normalizes charging speed across different battery sizes. Higher C-rates mean shorter charging times and more flexible road trip planning.

Battery Options

Gross Capacity: 83 kWh
Net Capacity: 80 kWh
Buffer: 3%
The YangWang U9 reaches peak charging power of 193 kW between 10–80% SOC.
It takes 23 min to charge from 10–80% SOC and adds 232 km of real-world highway driving range, representing a 2.0 C‑Rate. This performance is better than 0% in its class.

Average Charging Power

115 kW

Avg C‑rate: 1.4

Maximum Charging Power

200 kW

At 3 → 8% SOC

Minimum Charging Power

30 kW

0–100% Charging Time

45 min

Charging Curve

State of Charge over Time

SOC Range Charging Time Avg. Power Avg. C-Rate Energy Added
0% → 100% 45 min 114.6 kW 1.43 C 86.0 kWh
0% → 90% 33 min 140.3 kW 1.75 C 77.4 kWh
0% → 80% 26 min 158.0 kW 1.98 C 68.8 kWh
5% → 100% 43 min 113.1 kW 1.41 C 81.7 kWh
5% → 90% 31 min 139.6 kW 1.75 C 73.1 kWh
5% → 80% 24 min 158.4 kW 1.98 C 64.5 kWh
10% → 100% 42 min 110.5 kW 1.38 C 77.4 kWh
10% → 90% 30 min 137.2 kW 1.72 C 68.8 kWh
10% → 80% 23 min 156.2 kW 1.95 C 60.2 kWh
